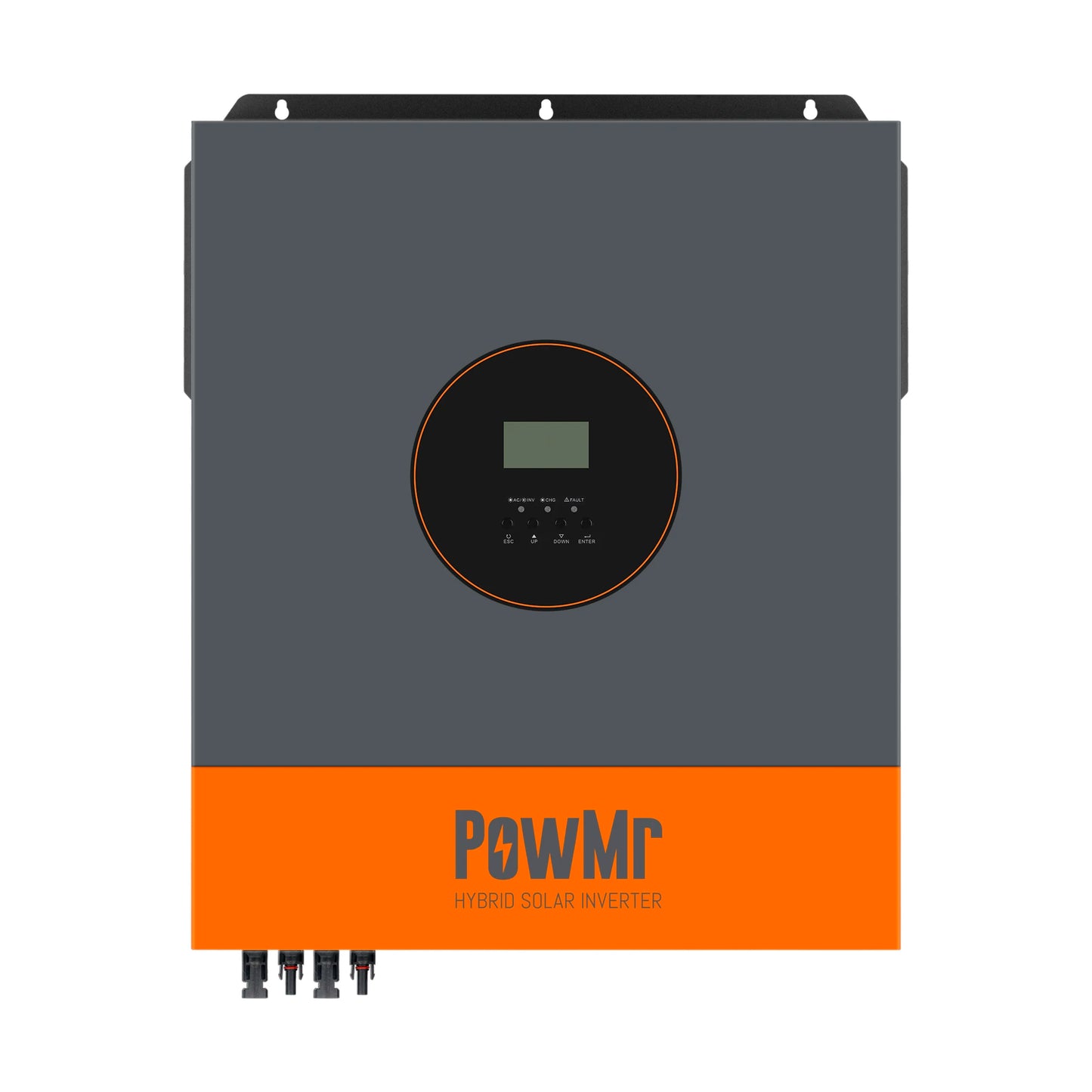

US Stock 6.2KW 11KW Hybrid Solar Inversor 48VDC to 230VAC Wtih 120A 150A MPPT Solar Charge Parallel Inverter Fit Lithium Battery
In stock
Couldn't load pickup availability
Description
SPECIFICATIONS
Brand Name: PowMr
Certification: CE
High-concerned chemical: None
Is Smart Device: Yes
Model Number: POW-6.2KP/11KP
Origin: Mainland China
Output Frequency: 50Hz/60Hz

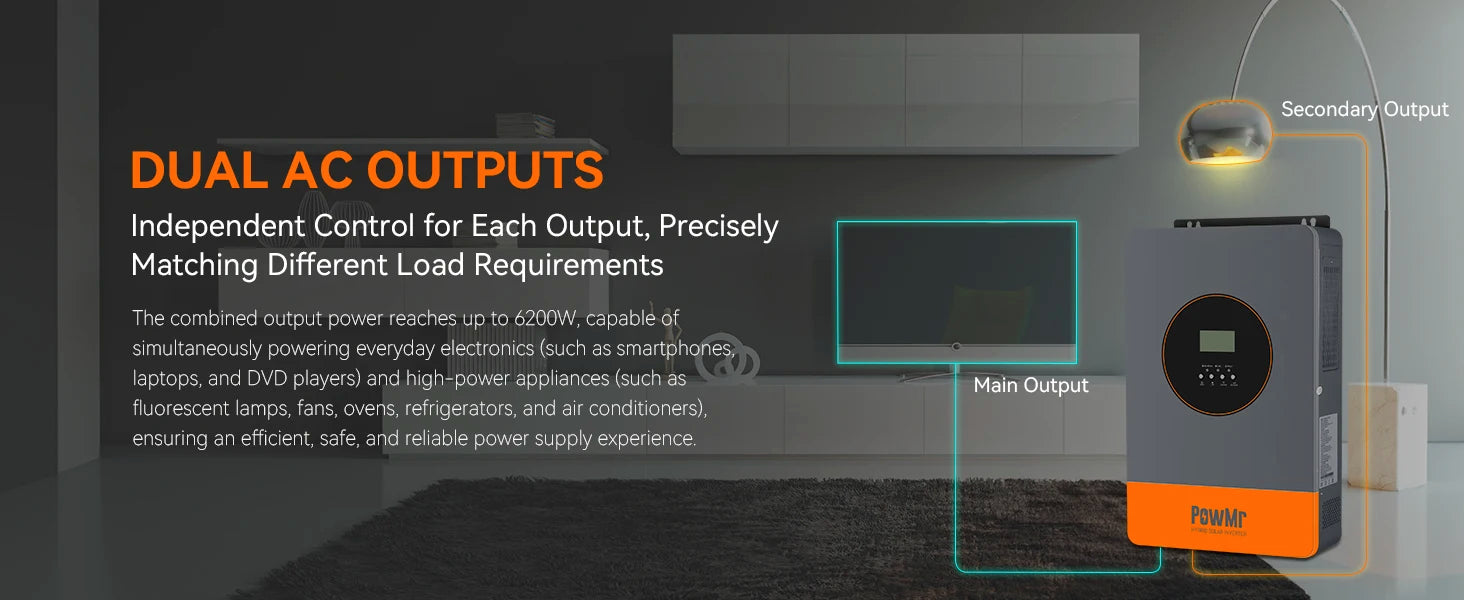

Output Type: DUAL

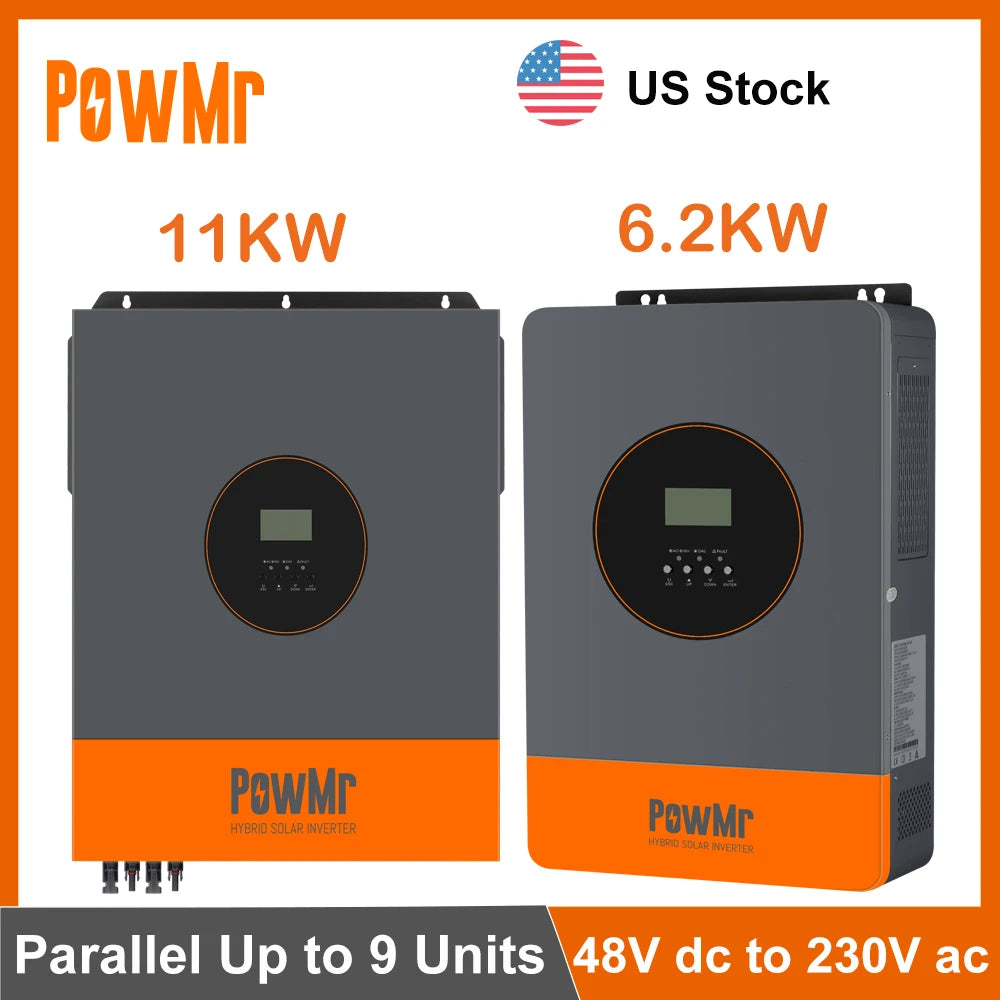

US Stock 6.2KW 11KW Hybrid Solar Inversor 48VDC to 230VAC Wtih 120A 150A MPPT Solar Charge Parallel Inverter Fit Lithium Battery
Ivnerter Feature

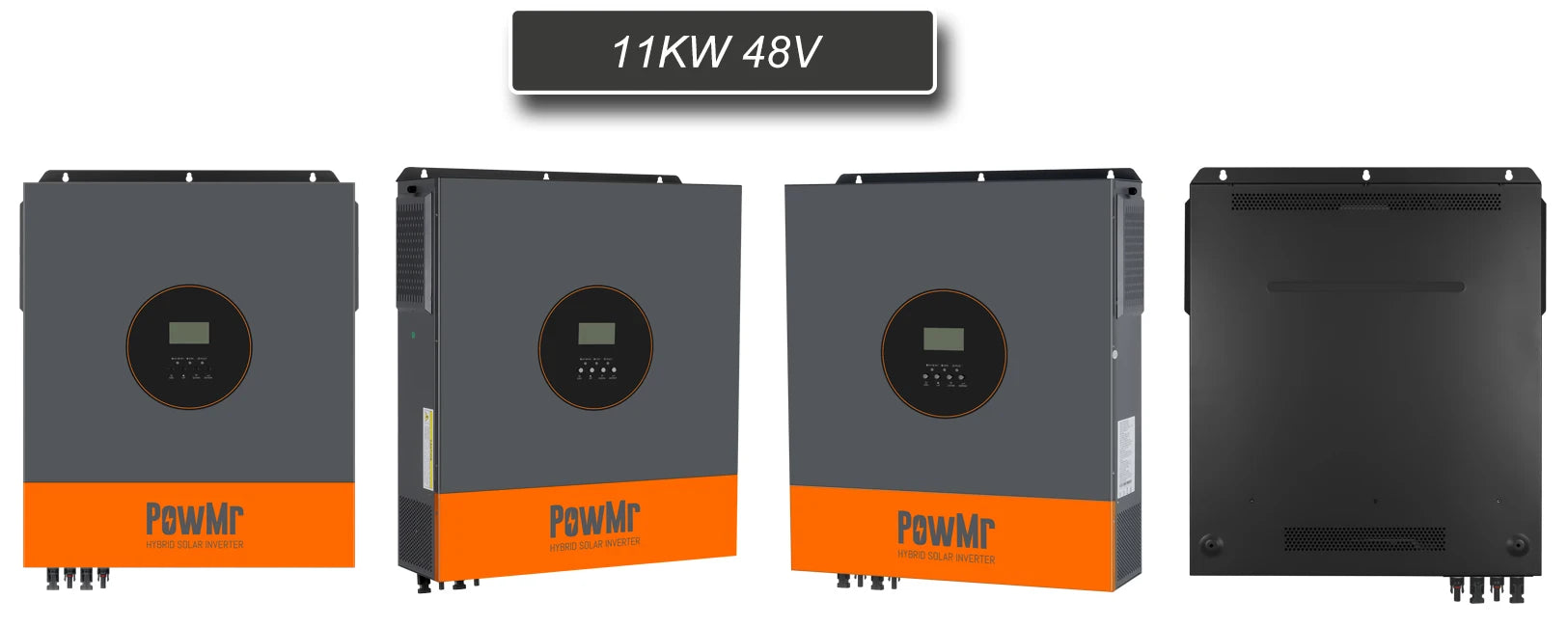

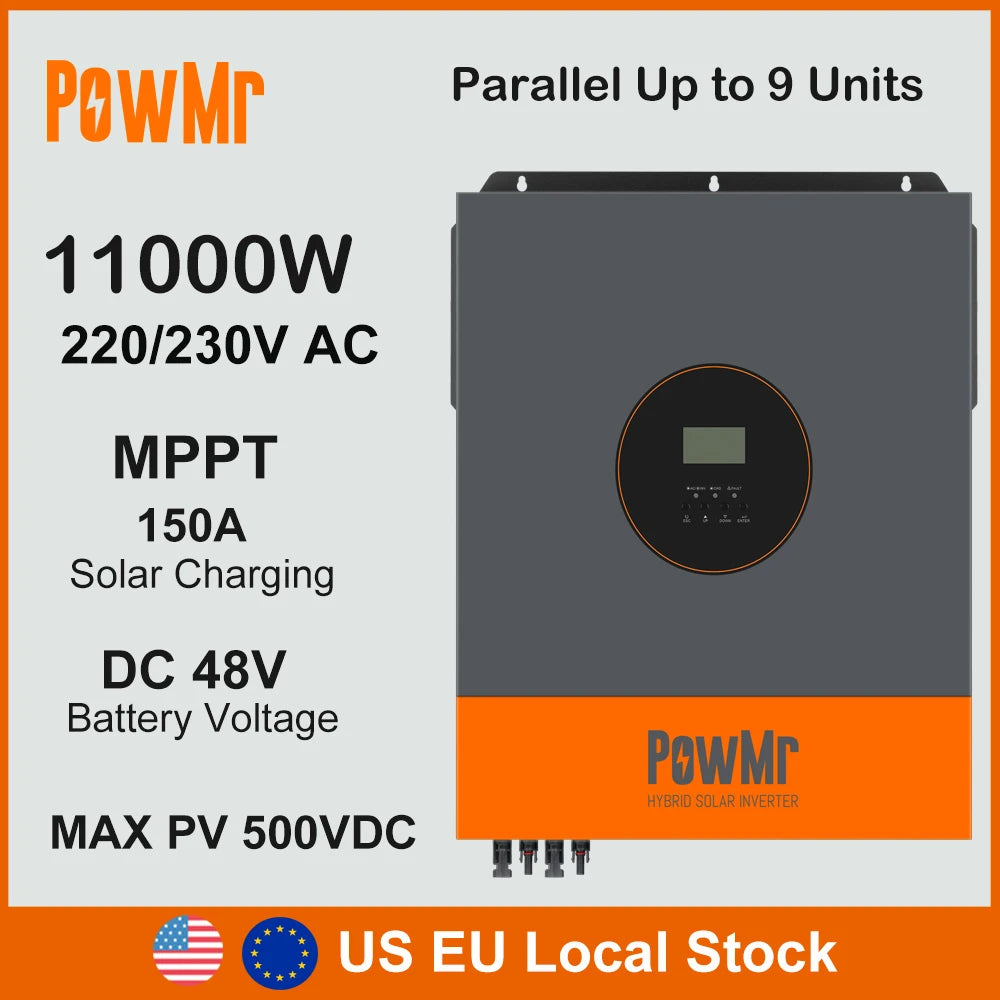

POW 11KP:
1. MPPT 150A Solar Charger
2. 48V battery voltage+230V AC
3. Dual MPPT, Dual output, MAX. PV Input Power 7500W/7500W
4. MPPT Tracking Range 90~500Vdc
5. Support RS232, BMS/RS485 Communication port and Lithium Battery

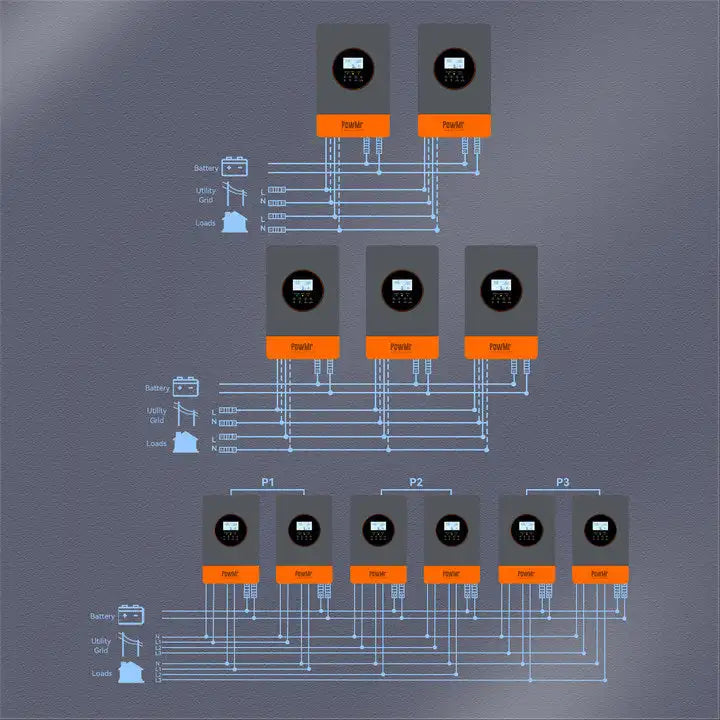

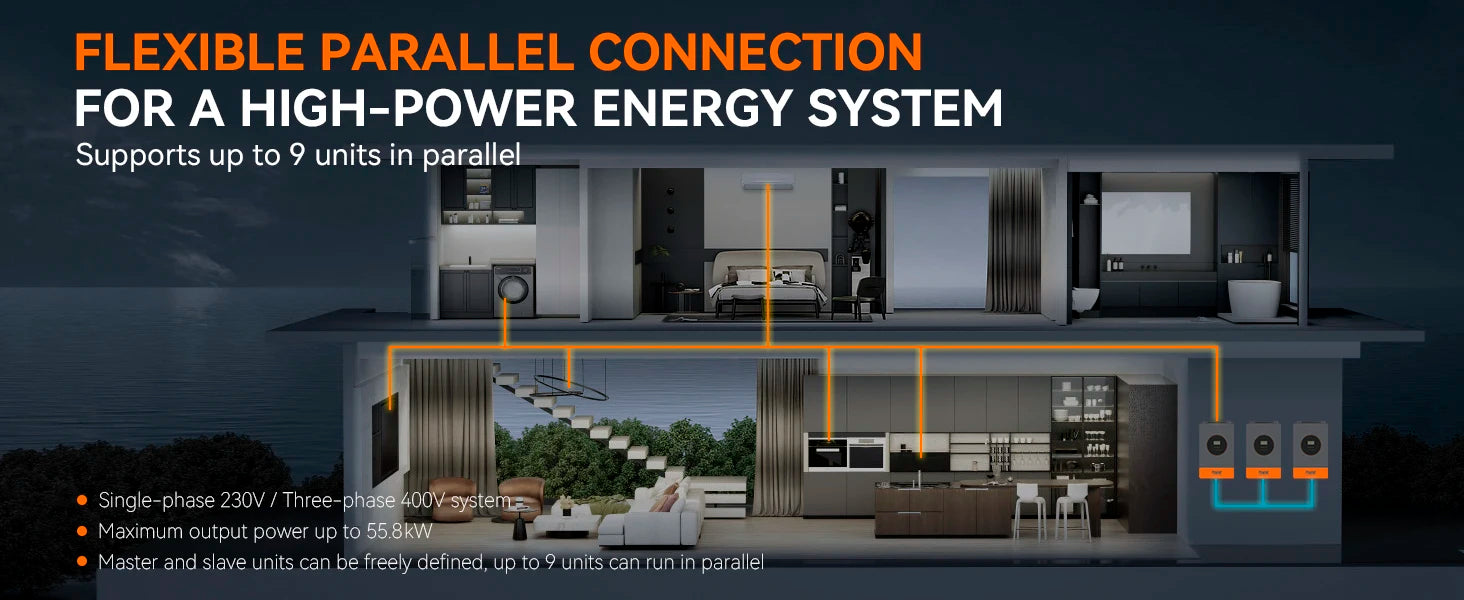

6. Parallel up to 9 units

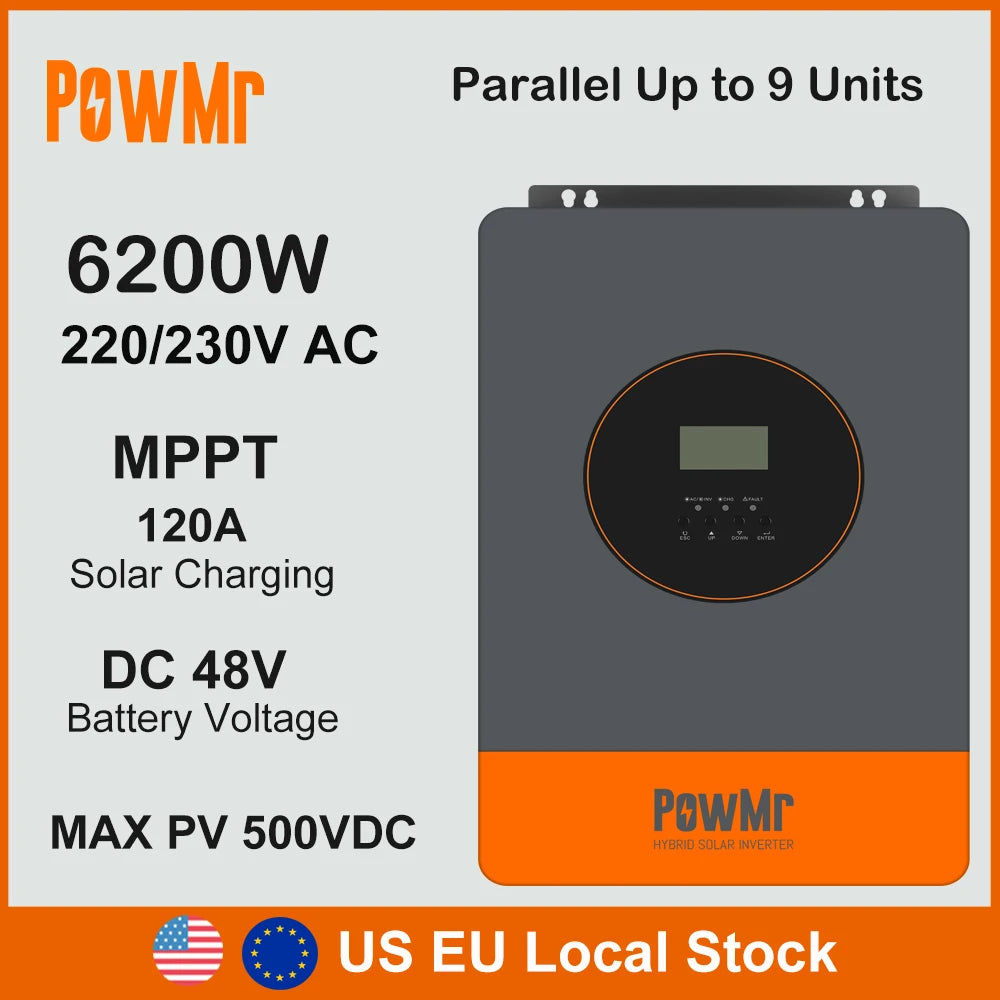

POW 6.2KP:
1. MPPT 120A Solar Charger
2. 48V battery voltage+230V AC
3. Dual output, MAX. PV Input Power 8500W
4. MPPT Tracking Range 60~500Vdc
5. Support RS232, BMS/RS485 Communication port and Lithium Battery
6. Parallel up to 9 units
Model |
6.2KP |
11KP |
Input Sources |
L+N+PE |
|
Rated Input Voltage |
220/230/240VAC |
|
Voltage Range |
90-280VAC±3V(APL Mode) ;
170-280VAC±3V(UPS Mode)
|
|
Frequency |
50Hz/60Hz(Auto Adaptive) |
|
Output Voltage |
220/230/240VAC |
|
Waveform |
Pure Sine Wave |
|
Transfer Time (Adjustable) |
Computers(UPS Mode)10ms, Appliance(APL Mode)20ms |
|
Peak Power |
12400VA |
22000VA |
Overload Capacity |
Battery mode: 11s@105%~150%Load;
2s@150%~200%Load; 400ms@>200%Load
|
|
Feed Into the Grid Voltage Range |
170-265VAC |
|
Maximum Conversion Efficiency (DC/AC) |
98% |
|
Battery Voltage |
48Vdc |
|
Constant Charging Voltage |
56.4Vdc |
|
Float Charging Voltage |
54Vdc |
|

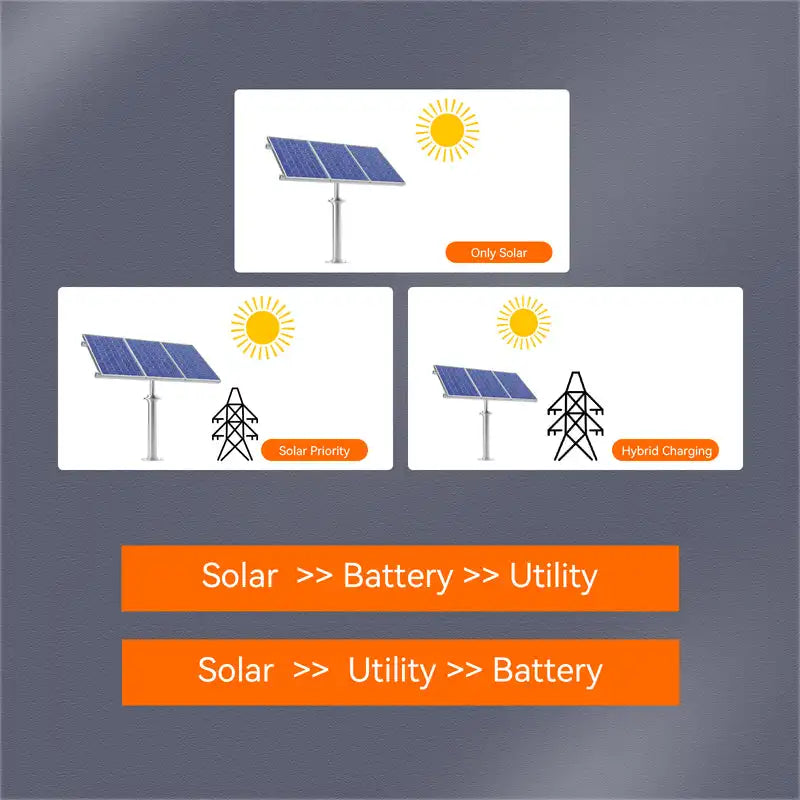

PV Charging Mode |
MPPT |
|
PV Charging Mode |
MPPT |
Dual MPPT |
MAX. PV Input Power |
8500W |
7500W/7500W |
MPPT Tracking Range |
60~500Vdc |
90~500Vdc |
Operating Voltage |
360~430V |
|
MAX. PV Input Voltage |
500Vdc |
|
PV Max Input Current |
27A |
27A/27A |
MAX. PV Charging Current |
120A |
150A |
MAX. AC Charging Current |
100A |
150A |
MAX. Charging Current |
120A |
150A |
LCD Interface |
CAN display running mode/load/input/output, etc. |
|
|
Extend the Socket

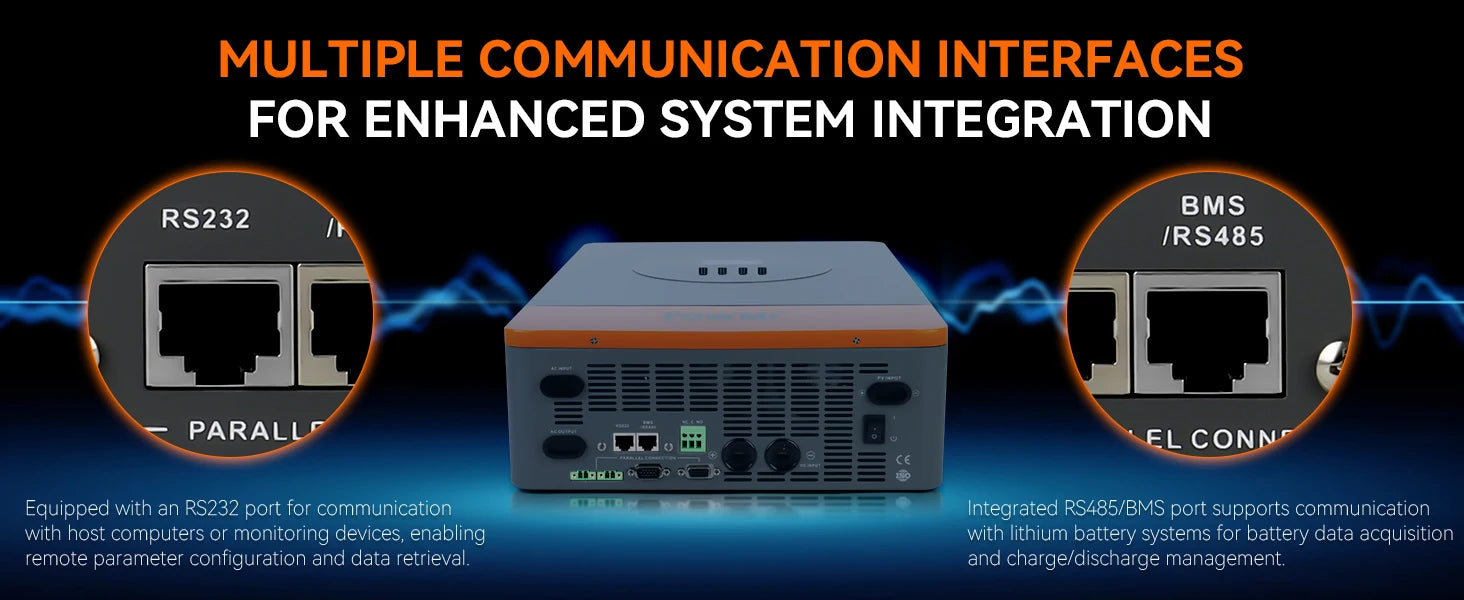

Communication Interface
|
Lithium Battery BMS Communication Card, WiFi Card,
Dry Contact
|
|
Parallel Machine Interface |
Parallel Machine(network) function |
|
Operating Temperature |
-10℃~50℃ |
|
Humidity |
20%~95%(Non-condensing) |
|
Storage Temperature |
-15℃~60℃ |
|
Noise |
≤50db |
|
Standards and Certification |
EN-IEC 60335-1, EN IEC 60335-2-29, IEC 62109- 1 |
|

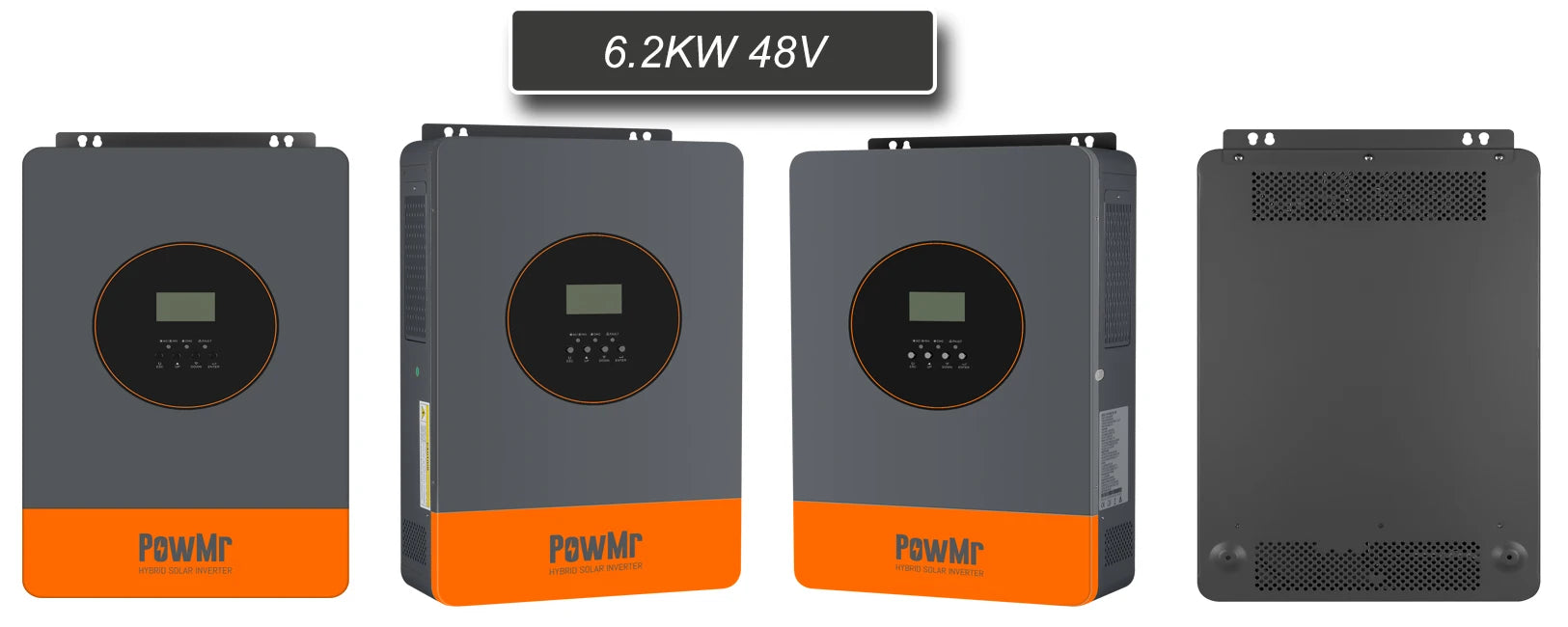

Describe for 6200W 48V
